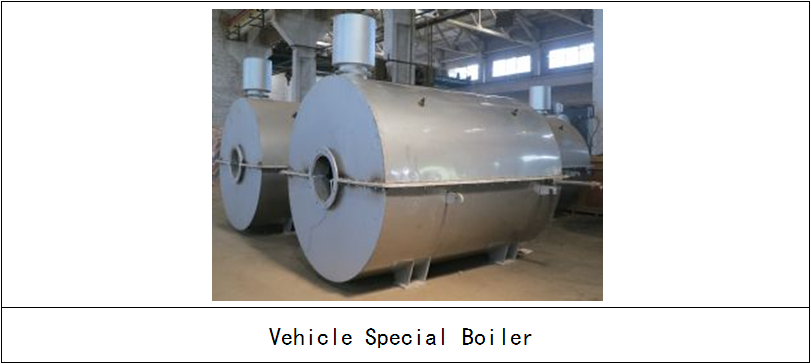

Vehicle Special Boiler
Product Description: it is the core part of well flushing-wax removaltruck and boiler truck, widely used in oil field heating medium, cleaning equipment and oil well cleaning. The utility model has the advantages of large working pressure, high temperature of heating medium, large displacement, fast heating speed, flexible and convenient installation and disassembly, etc.
Product features: the high temperature and high pressure medium (clear water) produced by it can be widely used in heating medium (exchange heat transfer), cleaning equipment, oil well cleaning, paraffin removal, plug removal and dredging of oil pipeline, which has ideal effect on simplifying oil production and workover operation, increasing oil well production, improving oil well paraffin removal operation conditions, reducing labor intensity, reducing operation cost, etc.
Main Technical Parameters | ||||
Name | Unit | Parameter | ||
Type | / | Horizontal DC forced circulation water tube boiler | ||
Working medium | / | Clean water, Crude oil | ||
Fuel types | / | Diesel oil,Natural gas | ||
Rated thermal power | kW | 350 | 700 | 1000 |
Max. working pressure | MPa | 6 | 9.8 | 20 |
Max. operating temperature | ℃ | 280 | 280 | 200 |
thermal efficiency | / | ≥90% | ||
Material of boiler pipe | / | Φ25×3/20G | Φ32×3.5/20G | Φ42×5/20G |
Safety facilities | / | Supporting air roof drainage device and anti explosion sheet | ||
