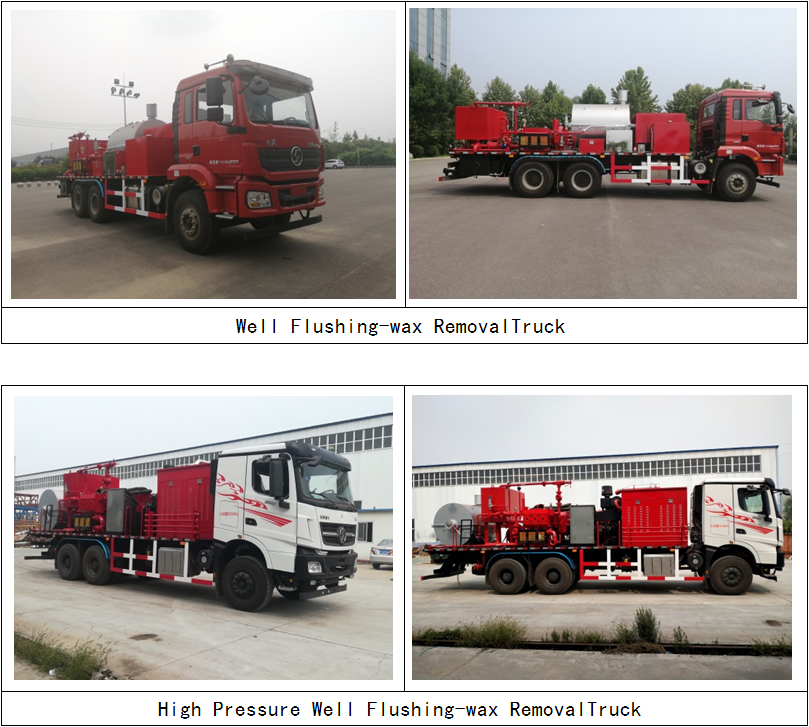

Well Flushing-wax RemovalTruck
Product introduction: it is a special oil vehicle refitted on the automobile chassis. It is mainly used for normal hot well flushing and plug removal of oil wells; high pressure well flushing and pressure test; pipe and rod paraffin removal in cooperation with workover operation; it is also widely used for heating other media, dredging and thawing ground pipelines and cleaning equipment and other operations.
Product features: it integrates high pressure well flushing, high pressure cementing, heating well flushing, steam paraffin cleaning, pressure test and other functions. The utility model has the characteristics of stable medium flow, high heat value, high thermal efficiency, high equipment utilization rate, long service life of three cylinder plunger pump and vehicle mounted special boiler, simple operation of vehicle mounted special boiler operation system, safe and reliable ignition, convenient maintenance, etc., and is an ideal equipment for well flushing, well cementation and paraffin removal in oil field.
Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.
Main Technical Parameters | |||||
Name | Unit | Parameter | |||
Max. working pressure of cold flushing | MPa | 35 | 40 | 70 | |
Max. working displacement of cold flushing | m3/h | 50 | 100 | 70 | |
Max. working pressure of hot flushing | MPa | 20 | |||
Max. working temperature of hot flushing | ℃ | 160 | |||
Corresponding displacement under the max. working temperature of hot flushing | m3/h | 4.85 | |||
Max. thermal power of on-board special boiler | kW | 1000,1500 | |||
Thermal efficiency of on-board special boiler | / | ≥90% | |||
Fuel type of on-board special boiler | / | Diesel oil,Natural gas | |||
Working medium | / | Clean water,Crude oil | |||
Working voltage ofspecial boiler | / | 24VDC | 380VAC | ||
Power supply form | / | Chassis battery | Diesel generator set |
