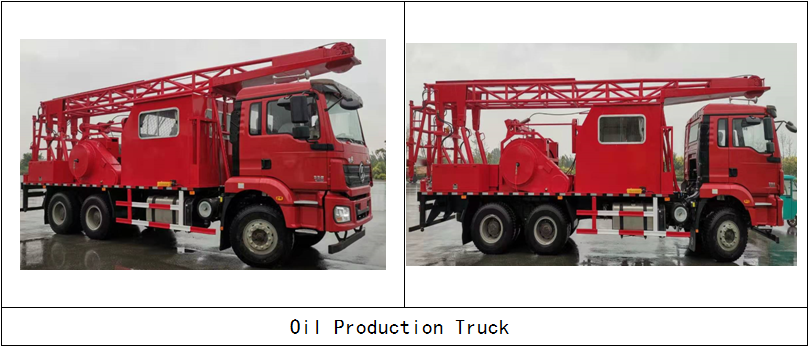

Oil Production Truck Location:Home-Products-Oil Production Truck

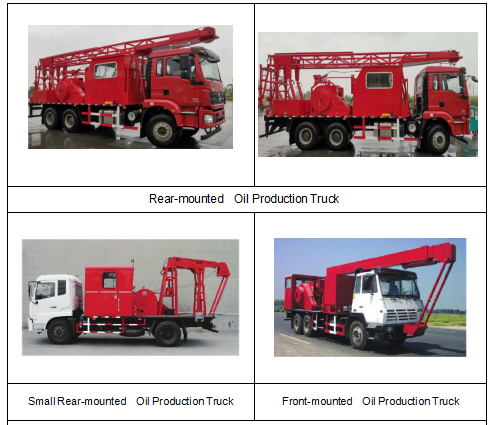

Product introduction:it is a special oil vehicle refitted on the automobile chassis. It is mainly used for oil production, forced drainage and oil testing of oil wells, as well as well as well as well as well as well as well as well as well as well as well as well as for well passing and fishing.

Product features: it integrates multiple functions such as oil production, forced drainage, oil testing, oil and water well logging and fishing. It adopts the principle of suction to carry out oil production, forced drainage and oil testing through oil well casings or oil extraction pipes. During operation, it only needs to align the steel rope with the wellhead, lower the pipe to a certain depth of the liquid surface and lift it up. The oil in the well can be extracted and automatically pressed into the tank truck or oil storage tank. It is an ideal equipment for oil production in oil field, which has the advantages of strong oil production mobility, low production cost, easy operation and maintenance, etc.

Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.

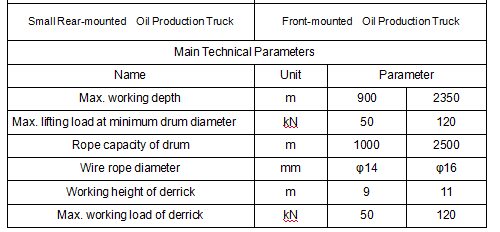

Main Technical Parameters

Name

Unit

Parameter

Max. working depth

m

900

2350

Max. lifting load at minimum drum   diameter

kN

50

120

Rope capacity of drum

m

1000

2500

Wire rope diameter

mm

φ14

φ16

Working height of derrick

m

9

11

Max.working load of derrick

kN

50

120
