Well Flushing-wax RemovalTruck Location:Home-Products-Well Flushing-wax RemovalTruck

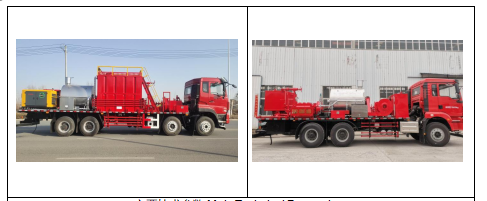

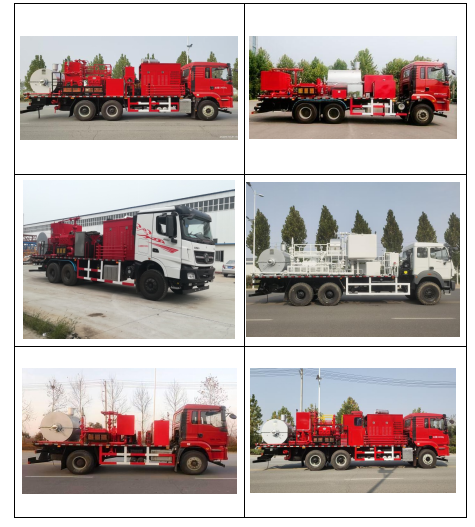

Product introduction: it is a special oil vehicle refitted on the automobile chassis. It is mainly used for normal hot well flushing and plug removal of oil wells; high pressure well flushing and pressure test; pipe and rod paraffin removal in cooperation with workover operation; it is also widely used for heating other media, dredging and thawing ground pipelines and cleaning equipment and other operations.

Product features: it integrates high pressure well flushing, high pressure cementing, heating well flushing, steam paraffin cleaning, pressure test and other functions. The utility model has the characteristics of stable medium flow, high heat value, high thermal efficiency, high equipment utilization rate, long service life of three cylinder plunger pump and vehicle mounted special boiler, simple operation of vehicle mounted special boiler operation system, safe and reliable ignition, convenient maintenance, etc., and is an ideal equipment for well flushing, well cementation and paraffin removal in oil field.

Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.

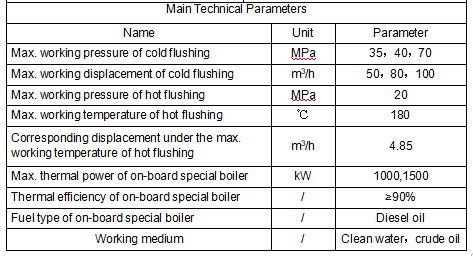

Main Technical   Parameters

Name

Unit

Parameter

Max. working pressure of cold flushing

MPa

35

40

70

Max. working displacement of cold flushing

m3/h

50

100

70

Max. working pressure of hot   flushing

MPa

20

Max. working temperature of hot   flushing

160

Corresponding displacement under the   max. working temperature of hot flushing

m3/h

4.85

Max. thermal power of on-board   special boiler

kW

1000,1500

Thermal efficiency of on-board   special boiler

/

≥90%

Fuel type of on-board special boiler

/

Diesel oil,Natural gas

Working medium

/

Clean water,Crude oil

Working voltage ofspecial boiler

/

24VDC

380VAC

Power supply form

/

Chassis battery

Diesel generator set
